Features :-

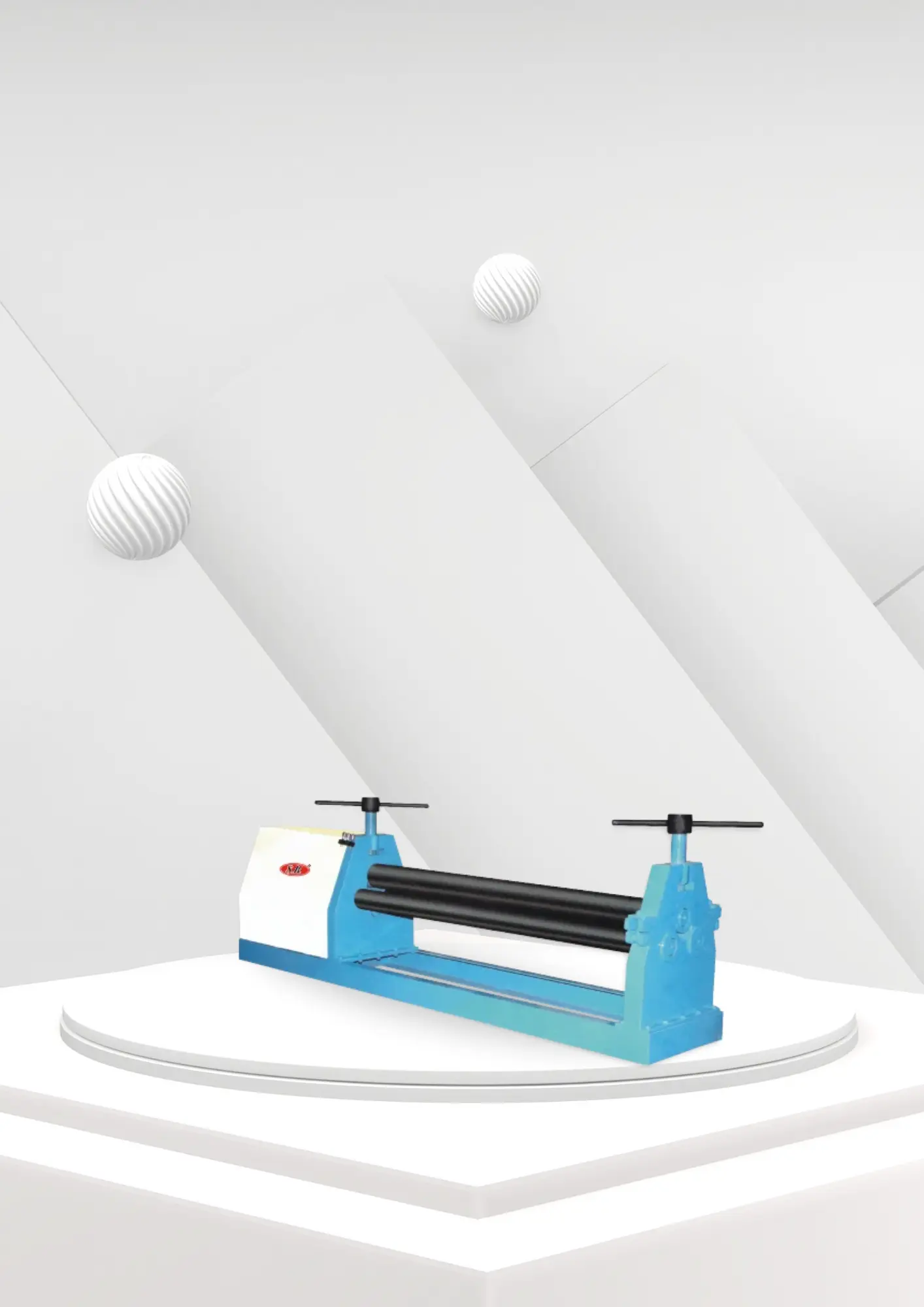

- 3 Roll Pyramid Type Design
- Bending Rolls Are Made from Alloy Gear Box
- Top Roll Adjustment is Manually Set by Screw Jack
- The Robust Welded Structure is Made from Mild Steel Plates
- High Quality Durable Worm Gear Box
- Bottom Rolls Are Power Driven
- Manual End Dropper Arrangement
Standard Accessories :-
- Main Motor Drive
- Electric Control Panel with Movable Operation Console (Not included in Some Basic Models)
- Ruler for Top Roll Movement & Level
- Manual Centralized Lubrication System
- 2 Nos.Screw Drive Road
- Nut Spanner
Optional Accessories :-
- Automatic Lubrication System
- Hardened Roll
- Hydraulic Jack & Power Pack for Top Roll
- Digital Readout System
- Extended Roll Shafts for Profile Bending
| Model | Bending Capacity | Top Roll Dia. | Bottom Roll Dia. | Prebending Capacity | Minimum Ben. Dia | Motor Power Hp |
|---|---|---|---|---|---|---|
| SKPB-1 | 1250×3 | 100 | 90 | 1 | 250 | 2 |
| SKPB-2 | 1500×3 | 115 | 100 | 1 | 290 | 3 |
| SKPB-3 | 2000×3 | 130 | 105 | 1 | 325 | 3 |
| SKPB-4 | 2500×3 | 150 | 125 | 1 | 375 | 5 |
| SKPB-5 | 3000×3 | 175 | 150 | 1 | 450 | 7.5 |
| SKPB-6 | 1250×6 | 125 | 105 | 3 | 315 | 3 |
| SKPB-7 | 1500×6 | 140 | 115 | 3 | 350 | 5 |
| SKPB-8 | 2000×6 | 160 | 135 | 3 | 400 | 5 |
| SKPB-9 | 2500×6 | 175 | 150 | 3 | 450 | 7.5 |
| SKPB-10 | 3000×6 | 200 | 170 | 3 | 500 | 10 |
| SKPB-11 | 1250×10 | 150 | 125 | 6 | 375 | 5 |
| SKPB-12 | 1500×10 | 160 | 135 | 6 | 400 | 7.5 |
| SKPB-13 | 2000×10 | 185 | 150 | 6 | 450 | 7.5 |
| SKPB-14 | 2500×10 | 200 | 170 | 6 | 500 | 10 |
| SKPB-15 | 3000×10 | 240 | 200 | 6 | 600 | 15 |
| SKPB-16 | 1250×12 | 175 | 140 | 8 | 450 | 7.5 |
| SKPB-17 | 1500×12 | 180 | 150 | 8 | 450 | 7.5 |
| SKPB-18 | 2000×12 | 205 | 160 | 8 | 525 | 10 |
| SKPB-19 | 2500×12 | 230 | 180 | 8 | 575 | 15 |
| SKPB-20 | 3000×12 | 260 | 220 | 8 | 650 | 20 |
| SKPB-21 | 1250×16 | 190 | 150 | 10 | 475 | 7.5 |
| SKPB-22 | 1500×16 | 200 | 160 | 10 | 500 | 10 |
| SKPB-23 | 2000×16 | 215 | 175 | 10 | 550 | 15 |
| SKPB-24 | 2500×16 | 240 | 200 | 10 | 600 | 20 |
| SKPB-25 | 3000×16 | 275 | 250 | 10 | 700 | 20 |
| SKPB-26 | 1250×20 | 200 | 160 | 12 | 500 | 10 |
| SKPB-27 | 1500×20 | 215 | 170 | 12 | 550 | 12.5 |
| SKPB-28 | 2000×20 | 230 | 190 | 12 | 600 | 15 |
| SKPB-29 | 2500×20 | 260 | 215 | 12 | 750 | 20 |
| SKPB-30 | 3000×20 | 290 | 250 | 12 | 850 | 25 |
| SKPB-31 | 1250×25 | 240 | 200 | 16 | 750 | 15 |
| SKPB-32 | 1500×25 | 250 | 215 | 16 | 750 | 15 |
| SKPB-33 | 2000×25 | 275 | 230 | 16 | 850 | 20 |
| SKPB-34 | 2500×25 | 300 | 260 | 16 | 900 | 30 |
| SKPB-35 | 3000×25 | 340 | 290 | 16 | 1200 | 40 |
| SKPB-36 | 1250×30 | 270 | 240 | 20 | 800 | 15 |
| SKPB-37 | 1500×30 | 280 | 250 | 20 | 900 | 20 |
| SKPB-38 | 2000×30 | 320 | 270 | 20 | 1000 | 25 |
| SKPB-39 | 2500×30 | 375 | 325 | 20 | 1300 | 30 |
| SKPB-40 | 3000×30 | 400 | 350 | 20 | 1500 | 40 |
