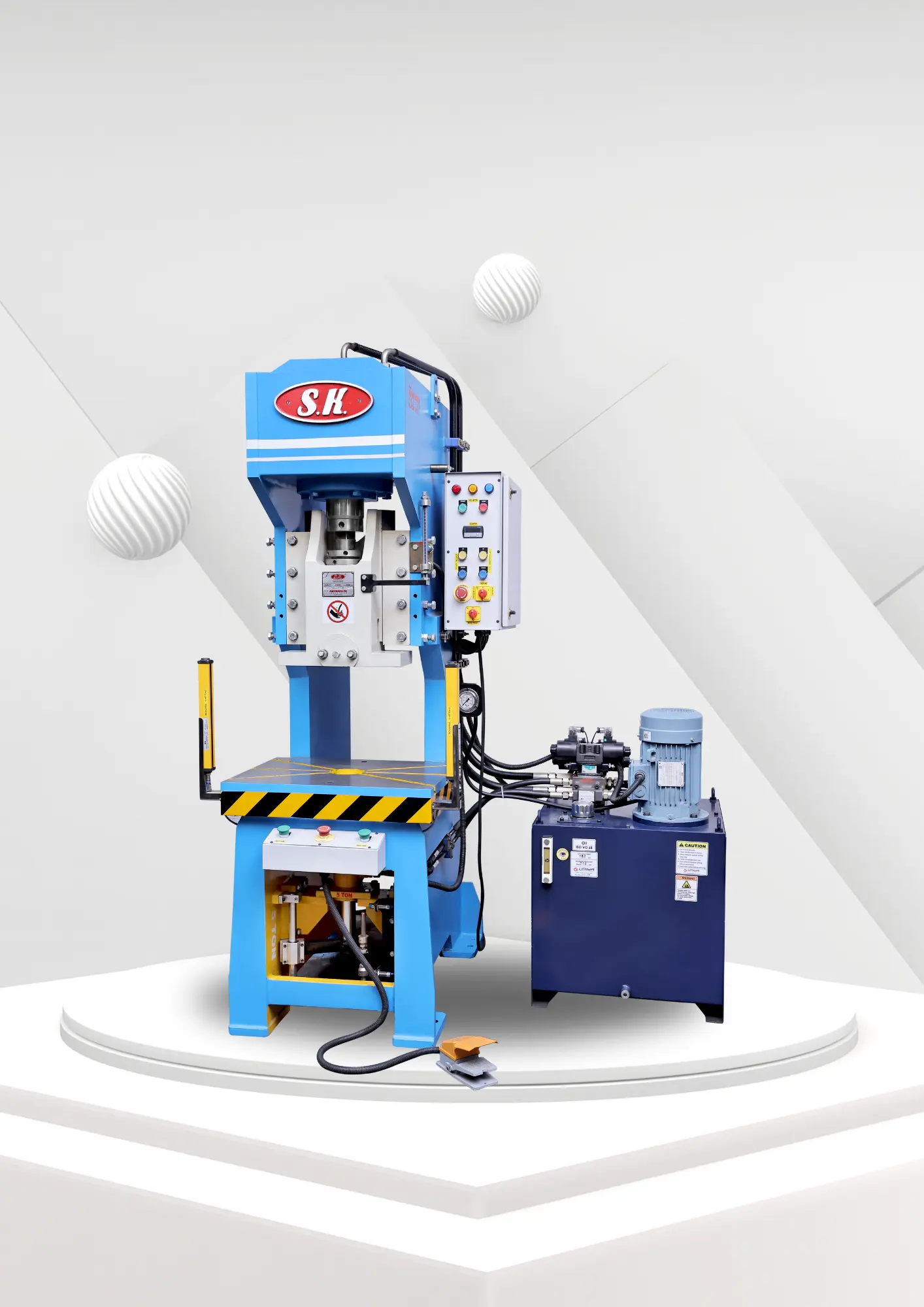

C-Type Hydraulic Press

Technical Specification :-

Frame :- The Frame Is Made From Steel Construction And Their Heavy Cross Section And Rigid Design Assured Minimum Deflection And Accurate Alignment Cast Iron Legs Will Be Supplied Up To 30 Ton Press.

Crank Shaft :- Crank Shaft Made From Special Alloy Steel To With Stand The Effective Load, It Is Fitted With Gun Metal Bushes For Smooth Working With High Accuracy.

Gears & Clutch :- The Gears Are Made From Cast Steel Or Fabricated And Its Teeths Are Generated By Hobbing. The Clutch Is Provided Of Pin/ Rolling Key Type, It Is Also Rigid And Well Supported For The Mass Production. Clutch Can Give Continuous Stroke.

Flywheel :- The Flywheel Is Made From Gradead Cast Iron For Strength And Is Balanced For Efficient And Releasing Adequate Energy For The Pressing Operations.

Lubtication :- Lubrication System Has Been Provided For Lubrication The Sliding Surface And Moving Parts.

Table & Ram :- Table And Ram Are Made From High Grade Heavy Duty Cast Iron & Properly Seasoned. They Are Perfectly Aligned To Match Each Other To Obtain High Accuracy & Precision Press Operation.

Standard Accessories :-

Main Drive Motor
Power Pack with all Hydraulic Component
Electrical Control Panel with Limit Switch and Foot Paddie Switch
Slide Adj. Spanner

Optional Accessories :-

Safetyt Lightt Curtain (Sensor)
Stroke Counter in Control Panel
Both Hand Operated Push Panel
Oil Coolant
Oil

Ton Capacity	10	20	30	50	60	80	100	150	200	250
Stroke Length Max.	75	100	110	130	140	150	150	200	200	225
Bed Size	406 x 254	508 x 305	558 x 355	660 x 406	711 x 457	762 x 508	813 x 584	915 x 610	965 x 660	1067 x 711
Hole In Bed	76	83	89	127	150	178	191	203	216	228
Dist. Bed to Ram	225	254	300	350	360	400	425	450	500	550
Hole In Ram	25	32	38	45	45	51	51	57	57	63
Motor H.P.	2	3	3	5	5	7.5	10	15	20	25
Oil Tank (Ltr)	80	120	130	170	200	250	300	400	450	500
Weight Approx	550	1050	1300	2000	2200	3200	4200	5500	8000	10000
